Automatic flush bolt
OLDA 39 HZA

note. This product was previously called 39 HZ

Function:

Automatic, single action flush bolt for spring-loaded bolting of passive door leaf in double doors.

Features:

OLDA 39 HZA is bolted and unbolted automatically and has bolt diameter 10 mm, backset 11 mm and forend width of only 16 mm.

Manufactured in steel. Coating: electro zinc plating.

Usage:

To be recessed into doors of wood, steel or aluminium profiles without joint edges, both up and/or down in the edge of passive door leaves, also rebated.

Installation:

OLDA 39 HZA is fitted recessed in the edge of the door, either flush, with cut-out or without cut-out for the forend.

Fixed with two screws.

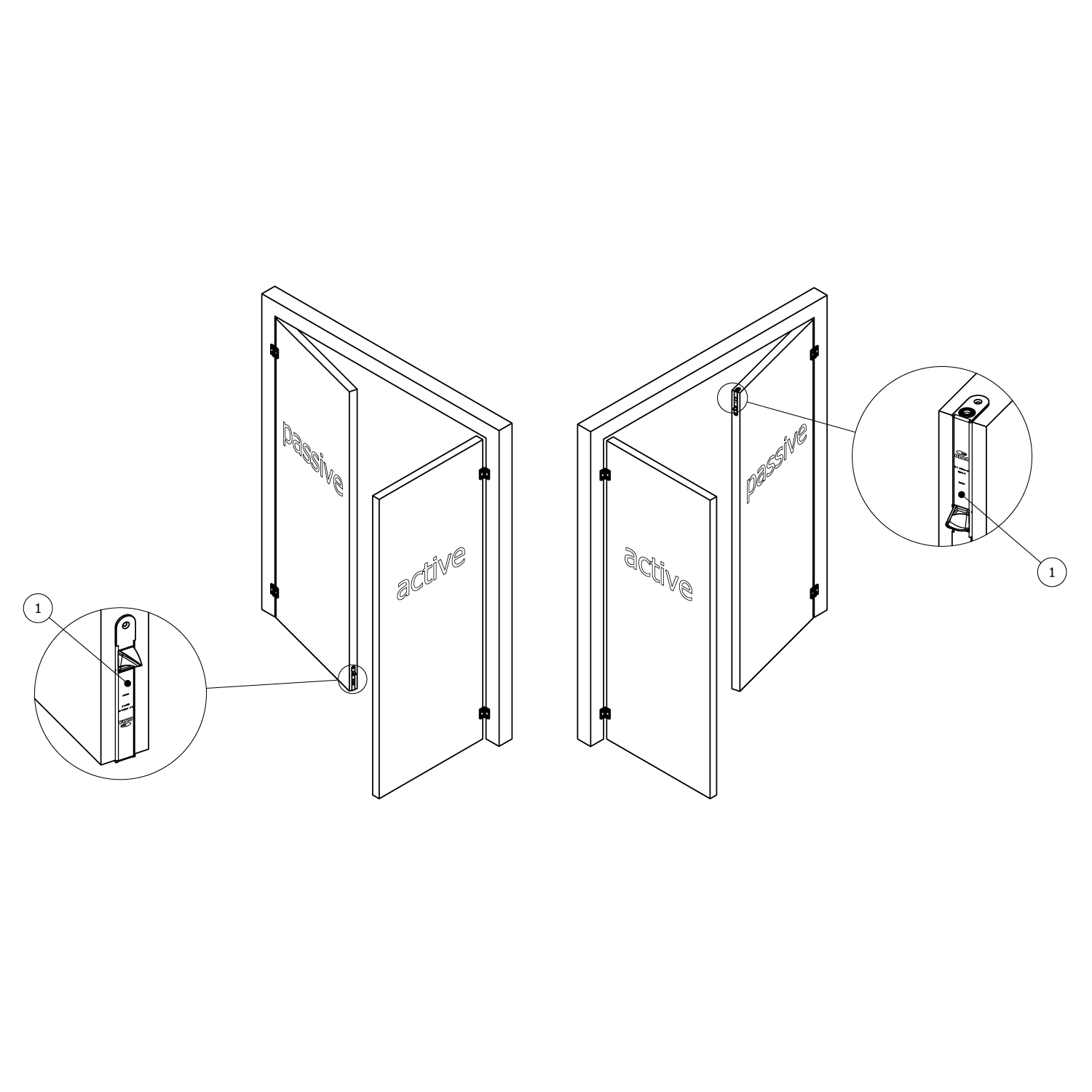

OLDA type 1 automatic flush bolt is fitted upper right and lower left in passive door leaf.

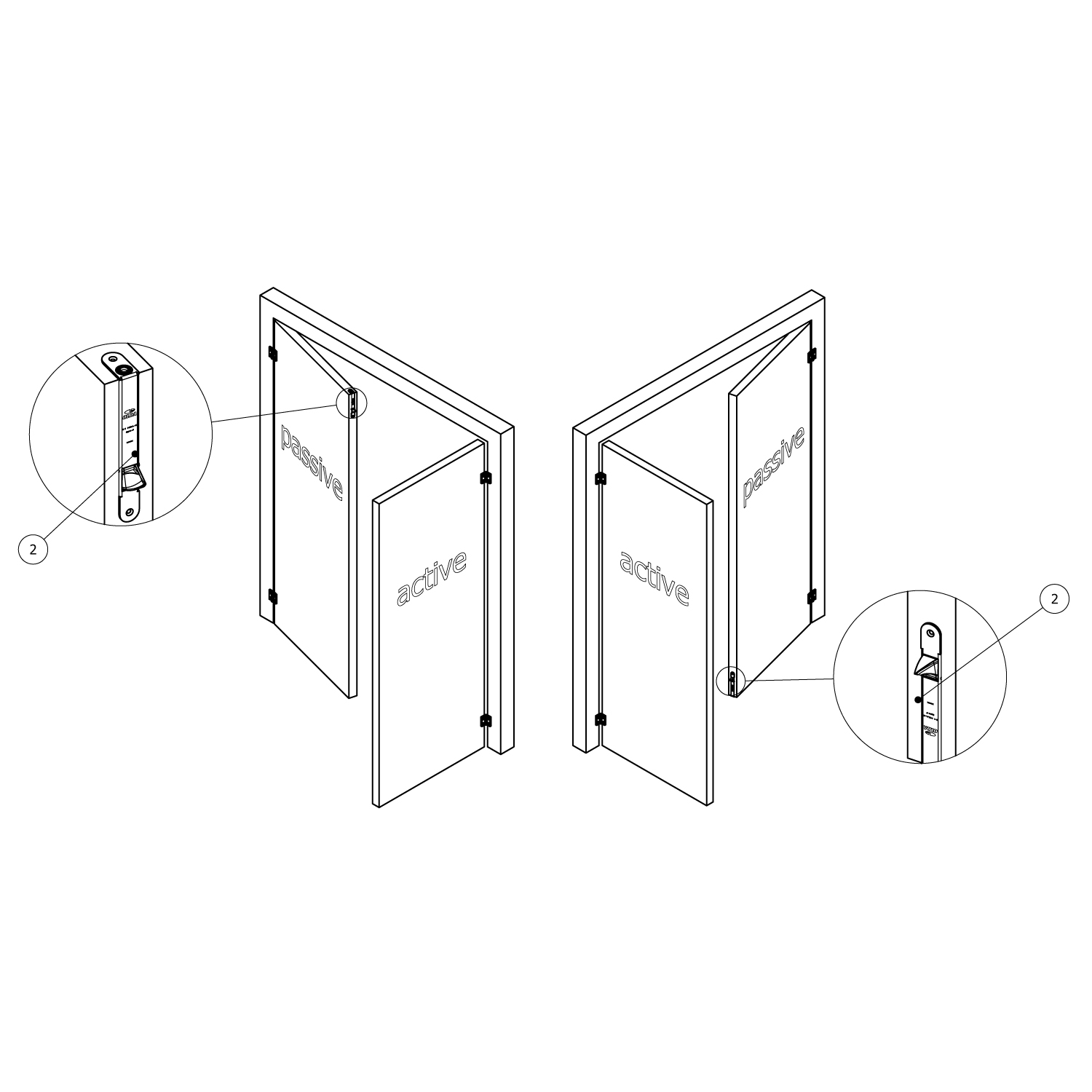

OLDA type 2 automatic flush bolt is fitted lower right and upper left in passive door leaf.

Accessories:

Lock plate LP 10.

Strike plate SP 10 or SP 20.

Specification:

  • Automatic, single action and spring-loaded bolt function
  • Bolt:
    • diameter: 10 mm
    • projection: 15 mm
    • adjustability: 0 mm
  • Electro zinc plated forend in steel – with square corners
  • Product:
    • width: 16 mm
    • height: 188 mm
    • depth: 23/50 mm
    • forend thickness: 3 mm
  • Backset including forend: 11 mm
  • Installation: in door leaf edge
    • fixed with electro zinc plated screws, countersunk (rec. dim. 3,5×40 mm), 2 pcs.
  • Accessories:
    • Lock plate LP 10
      • fastened with electro zinc plated screws, countersunk (rec. dim. 3,5×16 mm), 4 pcs.
    • Strike plate SP 10
      • fastened with electro zinc plated nails (rec. dim. 1×15 mm), 3 pcs.
    • Strike plate SP 20
      • fastened with electro zinc plated screws, countersunk (rec. dim. 4,2×16 mm), 2 pcs.
  • Material: steel
  • Coating: electro zinc plating

Product ID:

OLDA 39 HZA:
  • type 1: 10-039-1000-11xx
  • type 2: 10-039-2000-11xx

note. Accessories and screws for installation are ordered separately, or as a part of different product KITs.

Complementary products:

OLDA accessories for flush bolts

OLDA FS 12 and 15
– stainless-steel dust-excluding floor sockets for screw fitting.

OLDA FS R12 and R15
– stainless-steel dust-excluding round floor sockets especially designed for gluing.

Also see:

Type of OLDA flush bolt – guide (pdf)

OLDA Flush bolt guide (pdf)

OLDA Fittings school

Accessory guide OLDA (pdf)

Documents:

product documents

product leaflet
pdf: 39 HZA type1   /   39 HZA type2

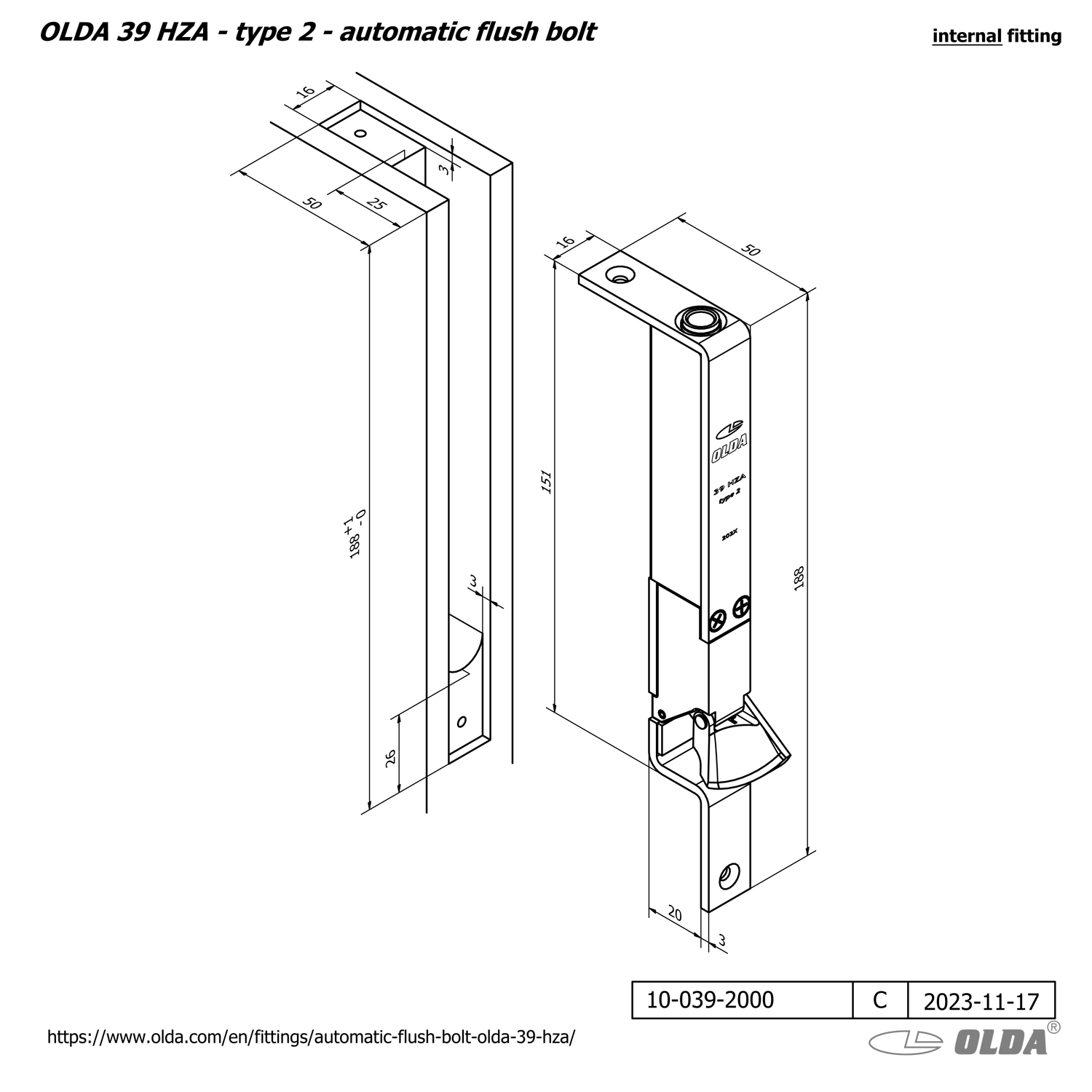

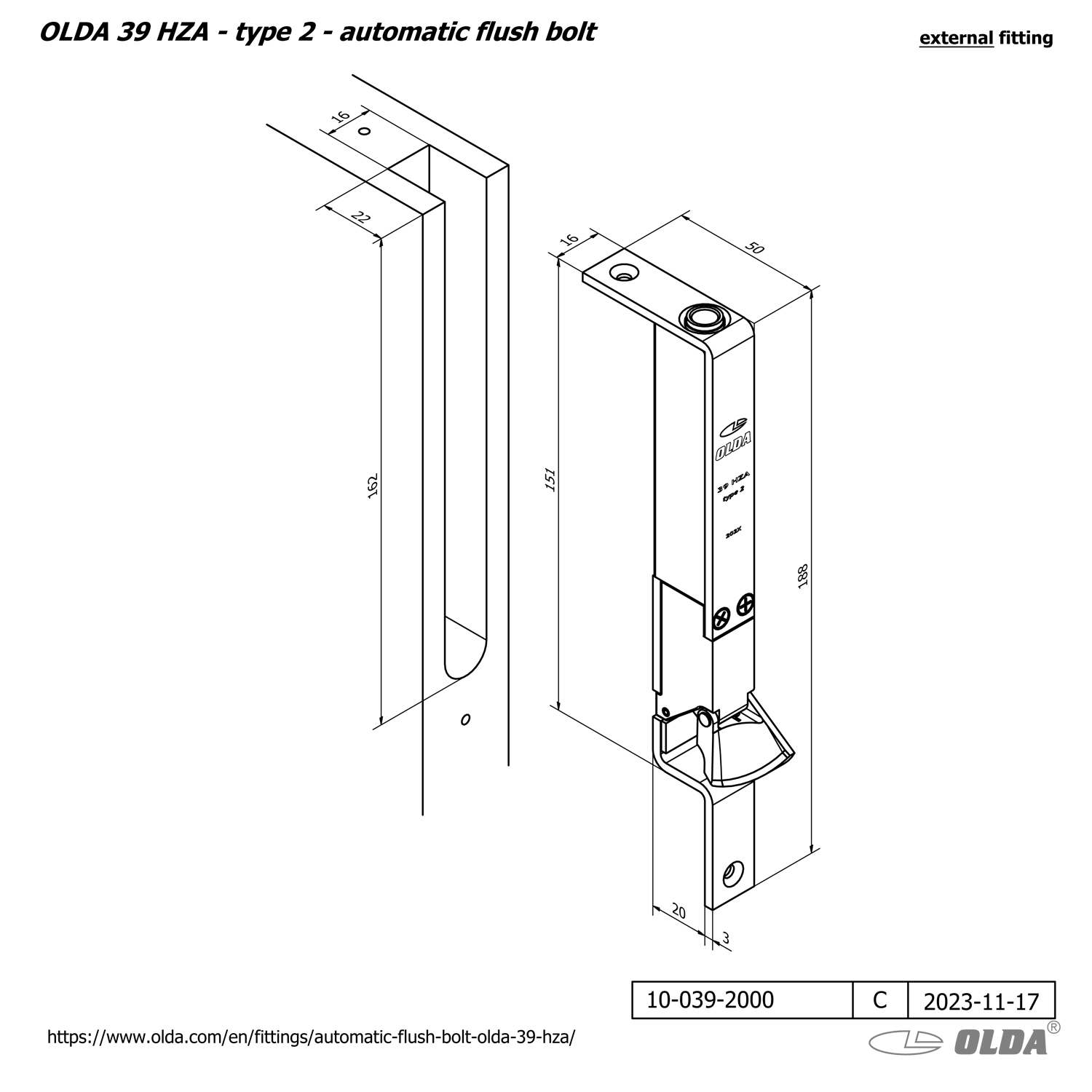

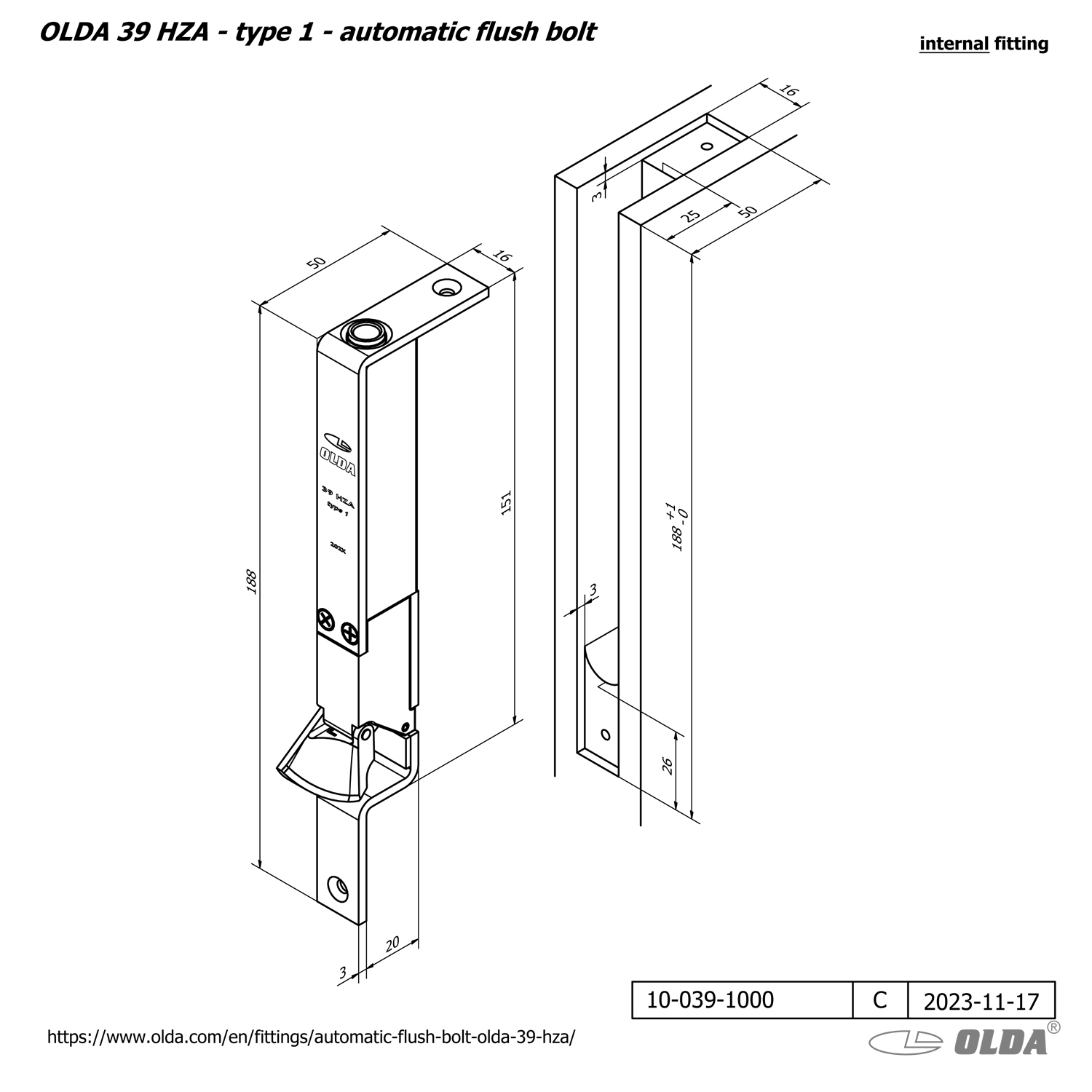

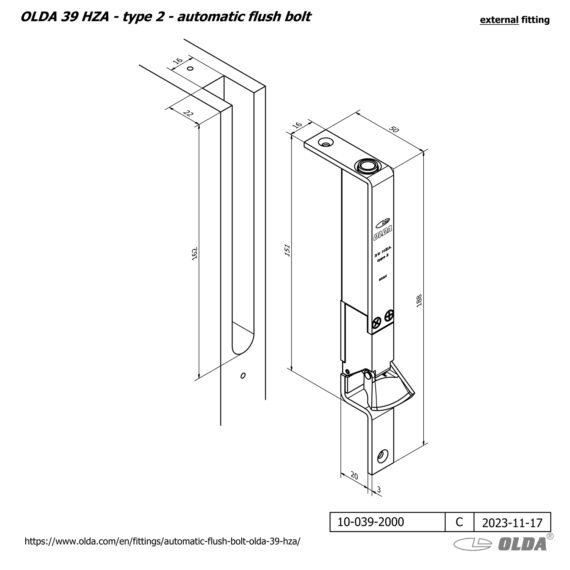

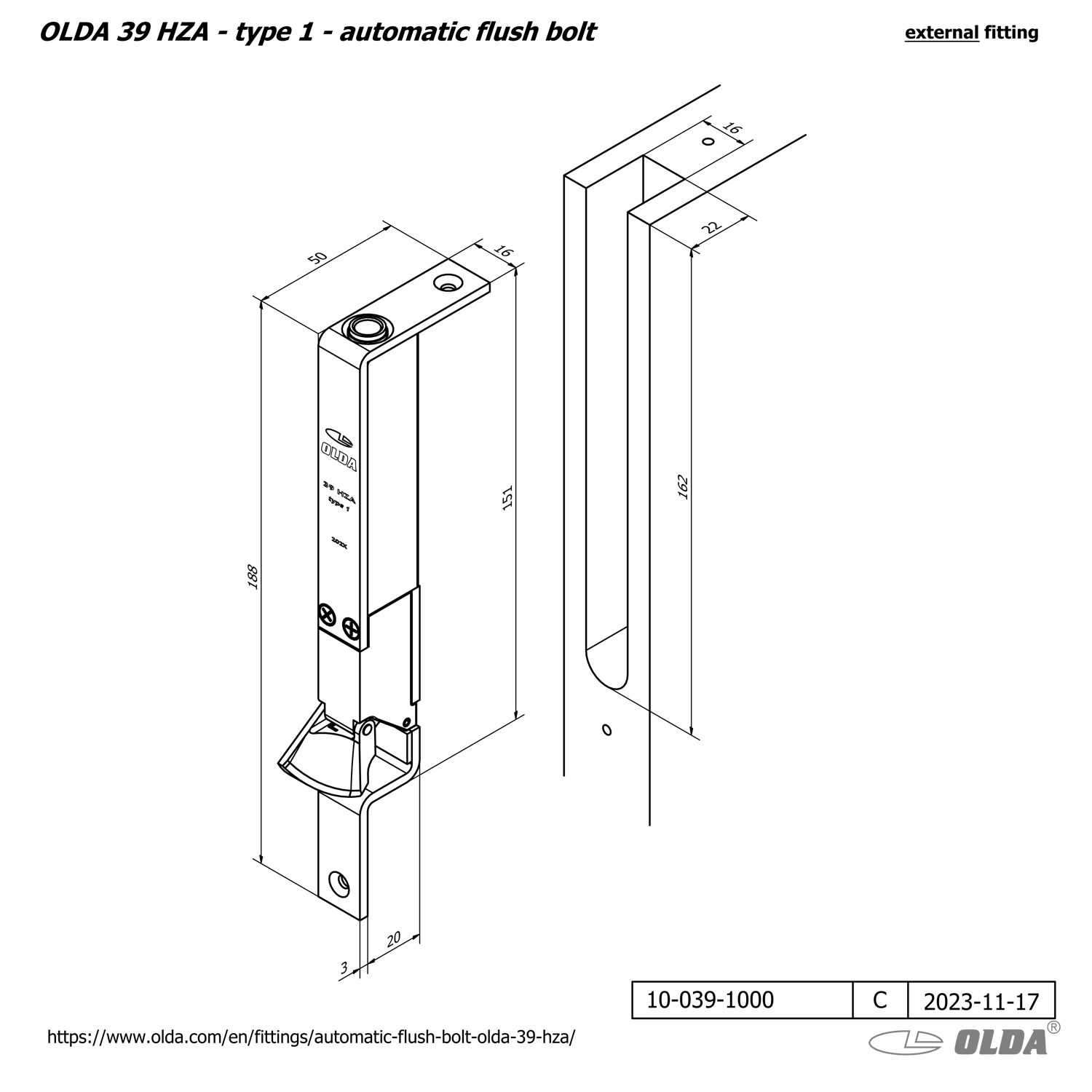

dimensions
