Automatic flush bolt
OLDA 31 HZA-C

note. This product was previously called 31 HZ-C

Function:

Automatic, single action flush bolt for spring-loaded bolting of passive door leaf in double doors.

Features:

OLDA 31 HZA-C is bolted and unbolted automatically and has bolt diameter 12 mm, backset 10 mm and forend width 20 mm.

Manufactured in steel. Coating: electro zinc plating.

Usage:

To be recessed into doors of wood, steel or aluminium profiles without joint edges, both up and/or down in the edge of passive door leaves, also rebated.

Installation:

OLDA 31 HZA-C is fitted recessed in the edge of the door, either flush, with cut-out or without cut-out for the forend.

Fixed with two screws.

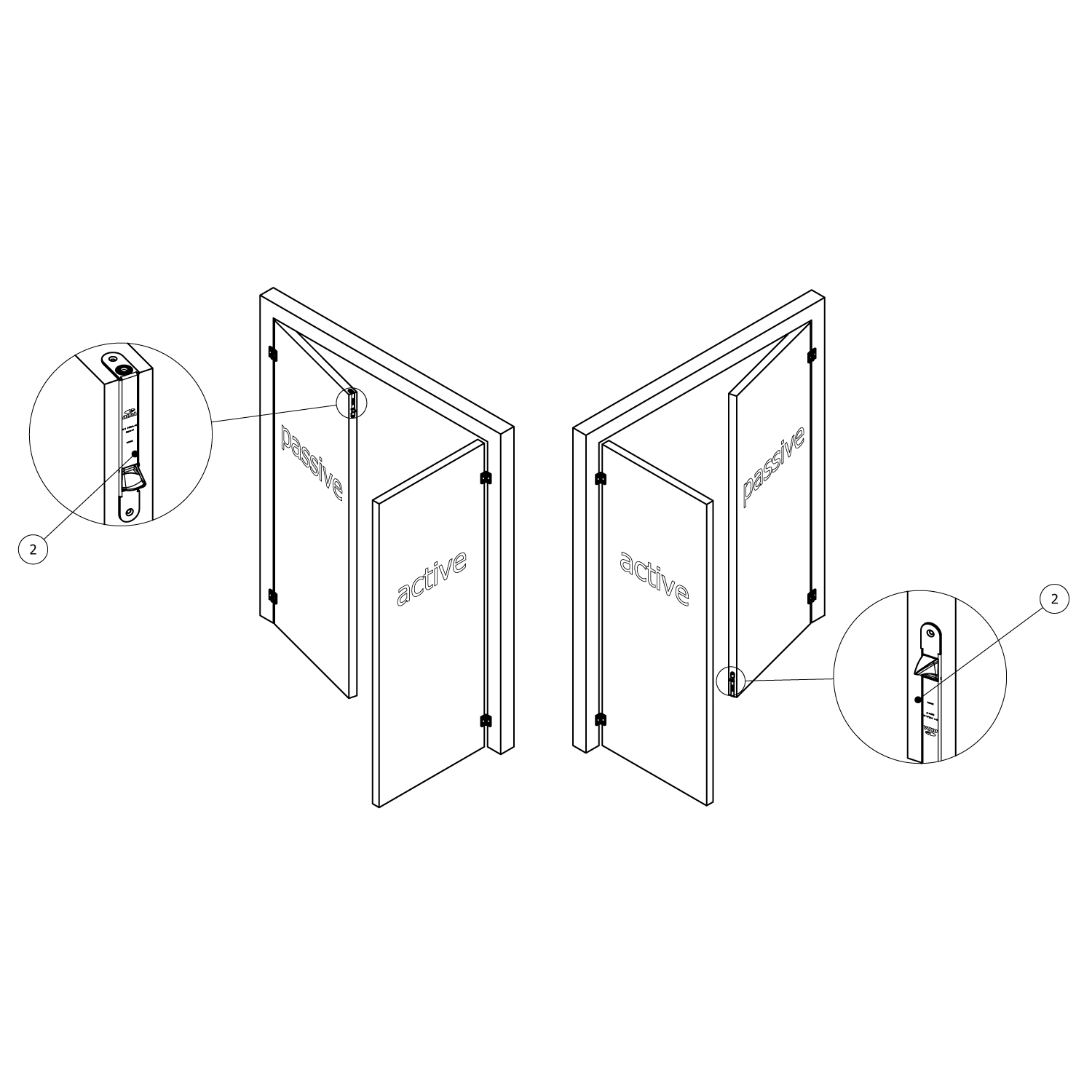

OLDA type 1 automatic flush bolt is fitted upper right and lower left in passive door leaf.

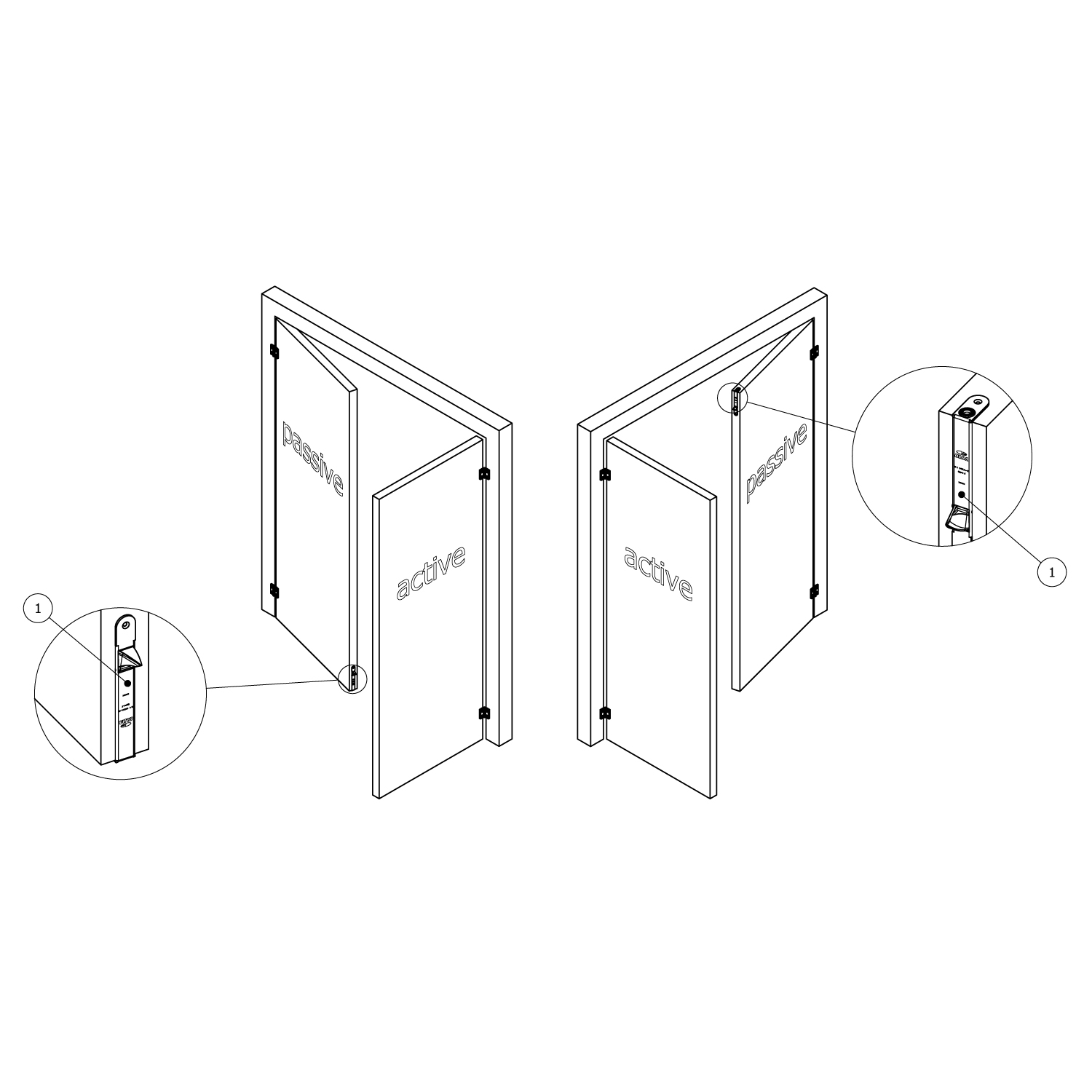

OLDA type 2 automatic flush bolt is fitted lower right and upper left in passive door leaf.

Accessories:

Lock plate LP 10.

Strike plate SP 10 or SP 20.

Specification:

  • Automatic, single action and spring-loaded bolt function
  • Bolt:
    • diameter: 12 mm
    • projection: 15 mm
    • adjustability: 0 mm
  • Round electro zinc plated forend in steel
  • Product:
    • width: 20 mm
    • height: 160 mm
    • depth: 20/40 mm
    • forend thickness: 2 mm
  • Backset including forend: 10 mm
  • Installation: in door leaf edge
    • fixed with electro zinc plated screws, countersunk (rec. dim. 3,5×40 mm), 2 pcs.
  • Accessories:
    • Lock plate LP 10
      • fastened with electro zinc plated screws, countersunk (rec. dim. 3,5×16 mm), 4 pcs.
    • Strike plate SP 10
      • fastened with electro zinc plated nails (rec. dim. 1×15 mm), 3 pcs.
    • Strike plate SP 20
      • fastened with electro zinc plated screws, countersunk (rec. dim. 4,2×16 mm), 2 pcs.
  • Material: steel
  • Coating: electro zinc plating

Product ID:

OLDA 31 HZA-C:
  • type 1: 10-031-1003-11xx
  • type 2: 10-031-2003-11xx

note. Accessories and screws for installation are ordered separately, or as a part of different product KITs.
