Manual flush bolt
OLDA 30 HZM – with extended bolt

note. This product was previously called 30 HZ

Function:

Manual, single action flush bolt for non-spring-loaded bolting of passive door leaf in double doors.

Features:

These versions of OLDA 30 HZM has bolts extended to protrude; 8, 15, 20 or 30 mm. This makes it possible to use them, also when there is a large gap between the door leaf and frame or sill, or when a sill is not fitted. They are also intended for integration with suitable automatic drop seals etc.

OLDA 30 HZM is bolted manually with a lever mechanism and has bolt diameter 10 mm, backset 12 mm and forend width 25 mm.

Same dimensions as automatic flush bolts OLDA 28 HZA type 1 and type 2.

Manufactured in steel. Coating: electrozinc plating.

Usage:

To be recessed into wooden doors, both up and/or down in the edge of passive door leaves.

Installation:

OLDA 30 HZM is fitted recessed in the edge of the door, either flush, with cut-out or without cut-out for the forend.

Fixed with four screws.

Accessories:

Lock plate LP 10.

Specification:

  • Manual, single action and non-spring-loaded bolt function
  • Extended bolt:
    • diameter: 10 mm
    • bolt extension / projection:

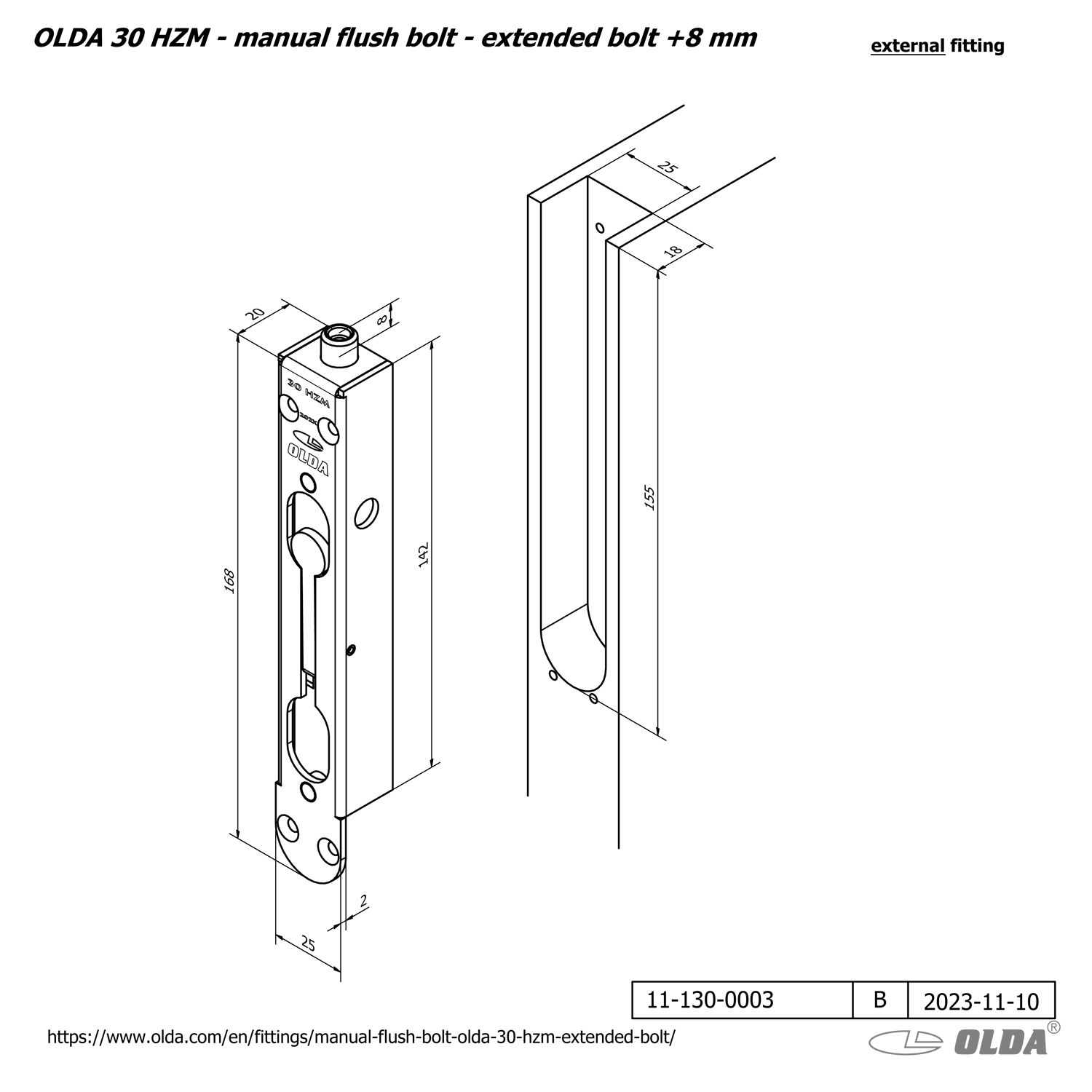

      • +8 mm / 27 mm

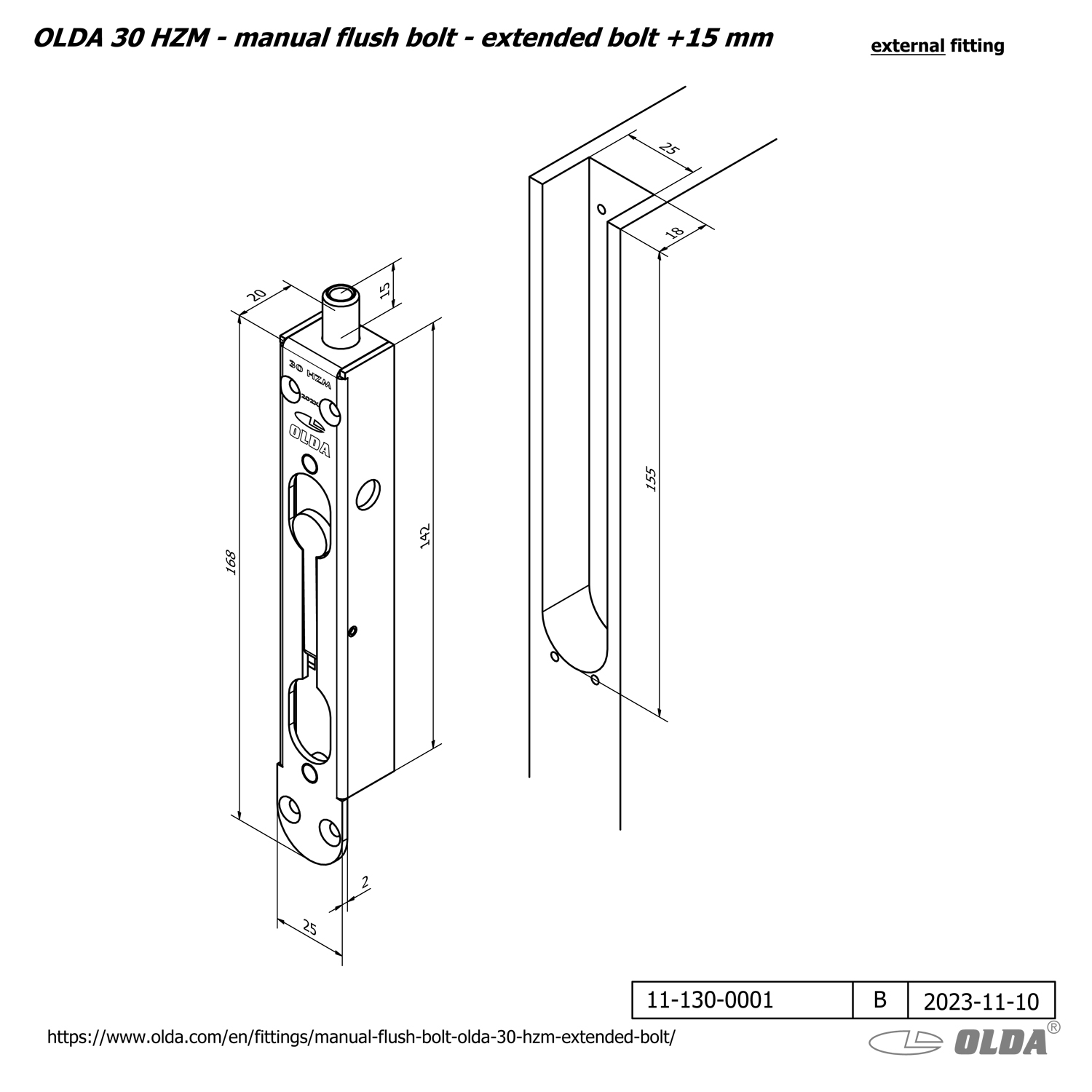

      • +15 mm / 34 mm

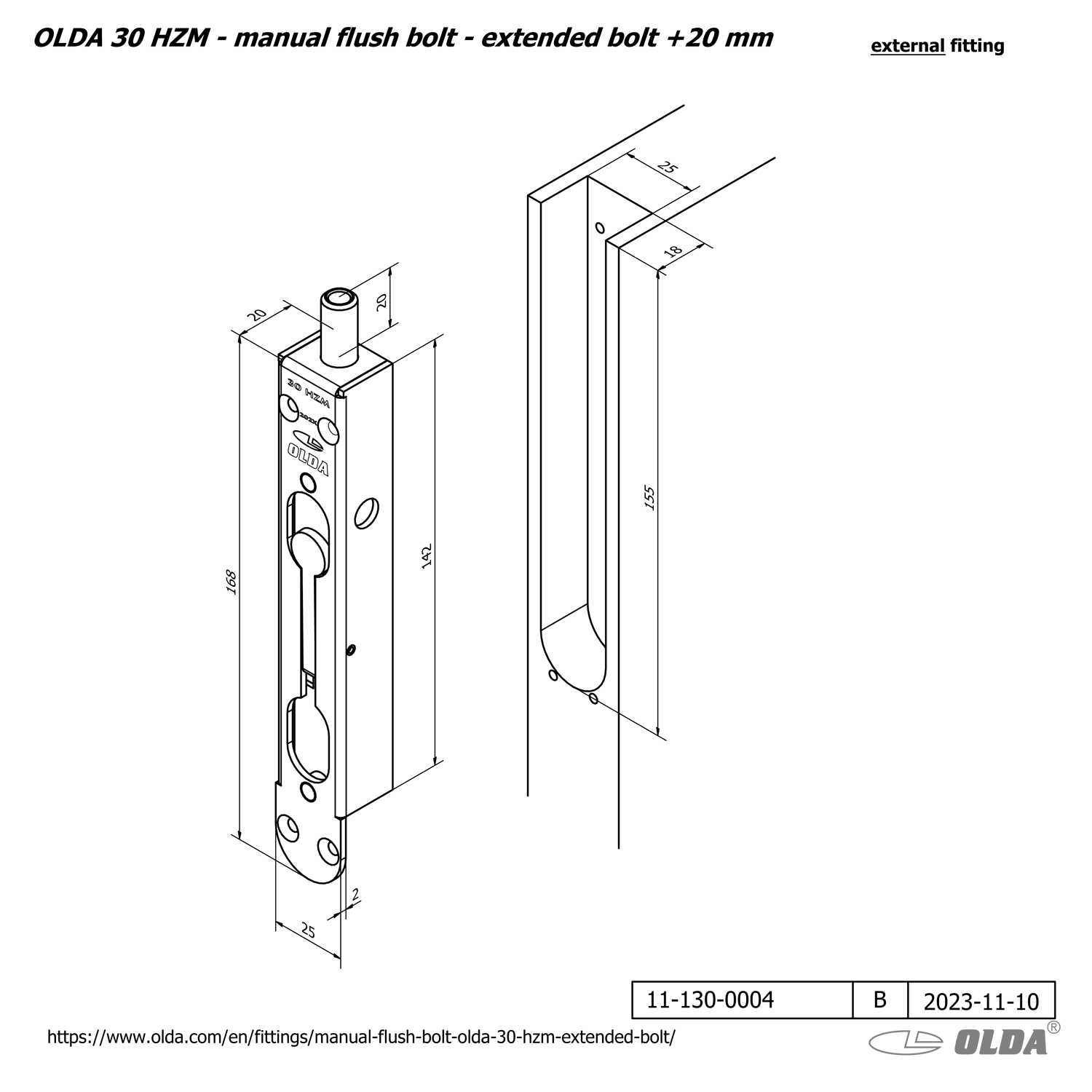

      • +20 mm / 39 mm

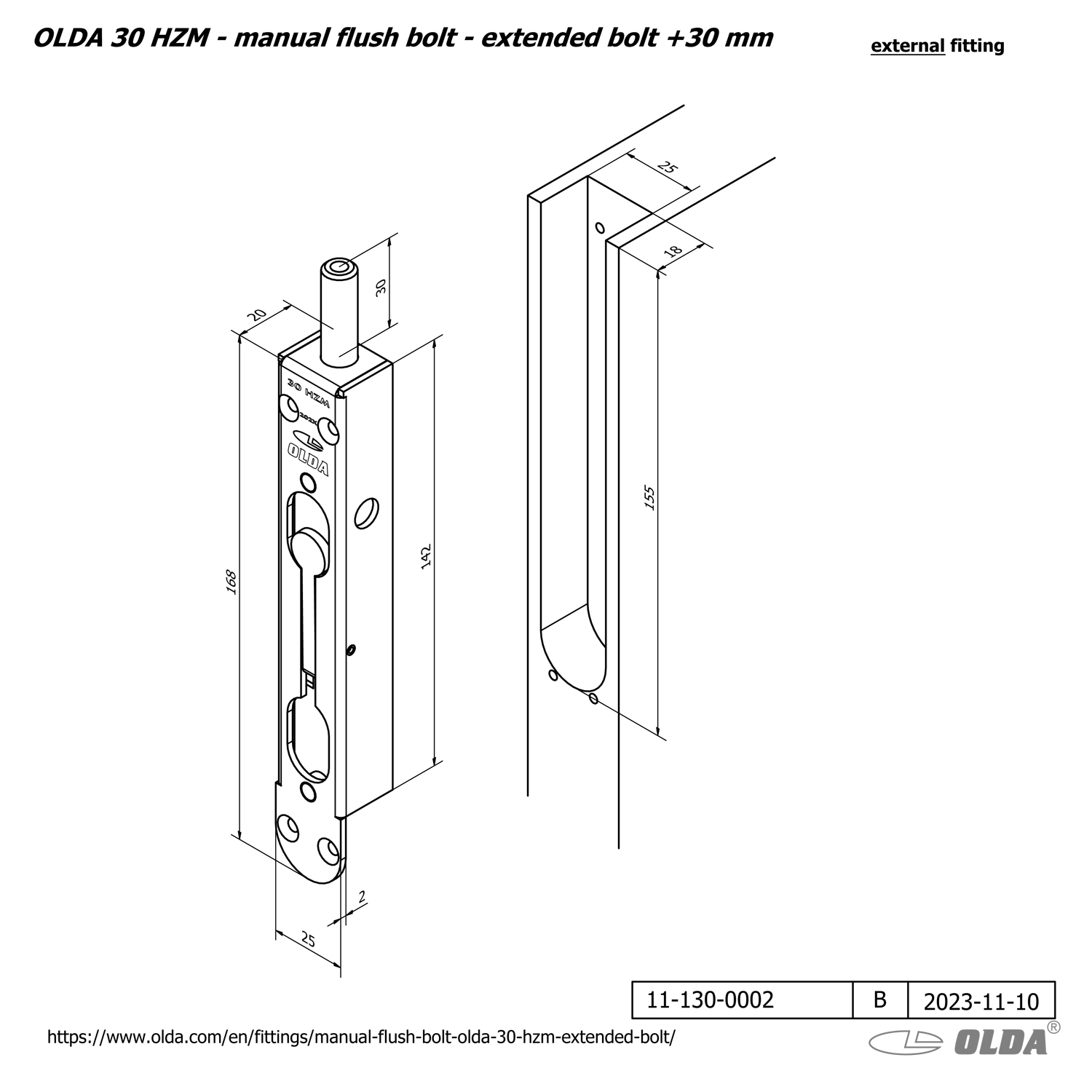

      • +30 mm / 49 mm
    • adjustability: -0 / +7 mm
  • Round electrozinc plated forend in steel
  • Product:
    • width: 25 mm
    • height: 168 mm + bolt extension
    • depth: 20 mm
    • forend thickness: 2 mm
  • Backset including forend: 12 mm
  • Installation: in door leaf edge
    • fixed with electrozinc plated screws, countersunk (rec. dim. 3,5×40 mm), 4 pcs.
  • Accessories: Lock plate LP 10
    • fastened with electrozinc plated screws, countersunk (rec. dim. 3,5×16 mm), 4 pcs.
  • Material: steel
  • Coating: electrozinc plating

Product ID:

product id [2022] – OLDA 30 HZM with extended bolt:
  • +8 mm: 11-130-0003-11xx
  • +15 mm: 11-130-0001-11xx
  • +20 mm: 11-130-0004-11xx
  • +30 mm: 11-130-0002-11xx

note. Accessories and screws for installation are ordered separately, or as a part of different product KITs.

article number [2021] – OLDA 30 HZ with extended bolt:
  • retail packaging 1 pce. – KIT including accessories and screws:
    • 47101430/+8
    • 47101430/+15
    • 47101430/+20
    • 47101430/+30
  • bulk packaging 30 pcs./pack. – KIT including accessories and screws:
    • 30HZ/+8/BULK
    • 30HZ/+15/BULK
    • 30HZ/+20/BULK
    • 30HZ/+30/BULK
  • bulk packaging 30 pcs./pack. – excluding accessories and screws:
    • 30HZ/+8/BULK/NA
    • 30HZ/+15/BULK/NA
    • 30HZ/+20/BULK/NA
    • 30HZ/+30/BULK/NA

Alternative versions:

OLDA 30 HZM with standard bolt

Related products:

OLDA 28 HZA with standard bolt
– automatic flush bolt, also with forend width 25 mm

OLDA 28 HZA with extended bolt
– automatic flush bolt, also with forend width 25 mm

Complementary products:

OLDA accessories for flush bolts

OLDA FS 12 and 15
– stainless-steel dust-excluding floor sockets for screw fitting.

OLDA FS R12 and R15
– stainless-steel dust-excluding round floor sockets especially designed for gluing.
